스프링 핵심 원리 - 고급편 - 섹션11. 스프링 AOP - 포인트컷

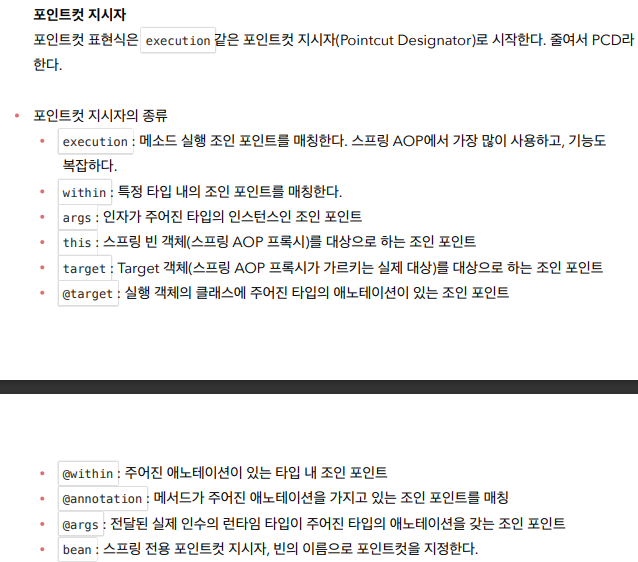

은근슬적 포인트컷 지시 문법들 그냥 넘어갔었는데 이번에 다룬다.

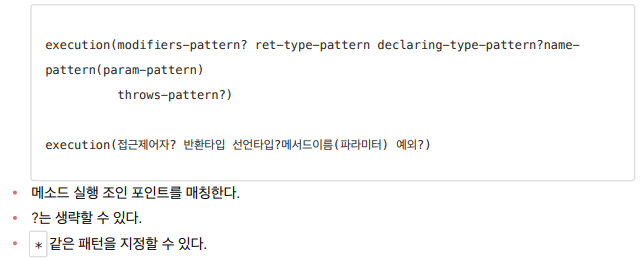

execution을 가장 많이 사용하고 나머지는 자주 사용하지는 않아 execution 위주로 볼거다.





기반 및 테스트코드 작성

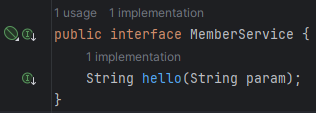

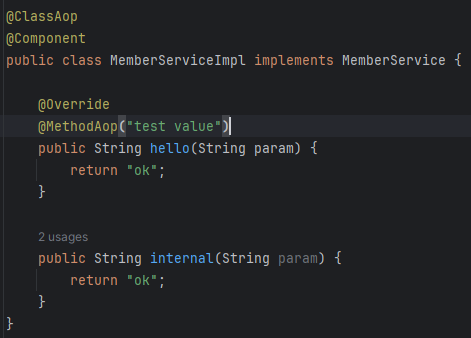

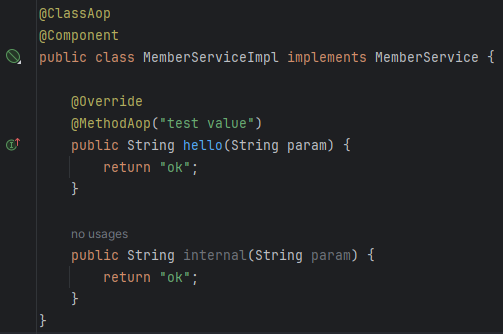

MemberService 클래스 인스턴스를 만들어 거기에 hello라는 함수를 가져온 모습이다.

이걸 기반으로 포인트컷 문법들을 본다.



@Slf4j

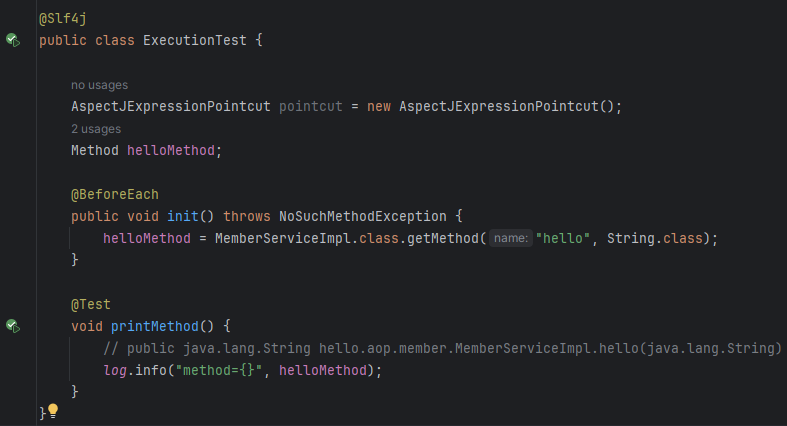

public class ExecutionTest {

    AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
    Method helloMethod;

    @BeforeEach
    public void init() throws NoSuchMethodException {
        helloMethod = MemberServiceImpl.class.getMethod("hello", String.class);
    }

    @Test
    void printMethod() {
        // public java.lang.String hello.aop.member.MemberServiceImpl.hello(java.lang.String)
        log.info("method={}", helloMethod);
    }

    @Test
    void exactMatch() {

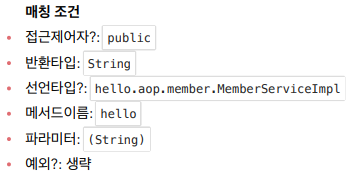

        pointcut.setExpression("execution(public String hello.aop.member.MemberServiceImpl.hello(java.lang.String))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }

    @Test
    void allMatch() {

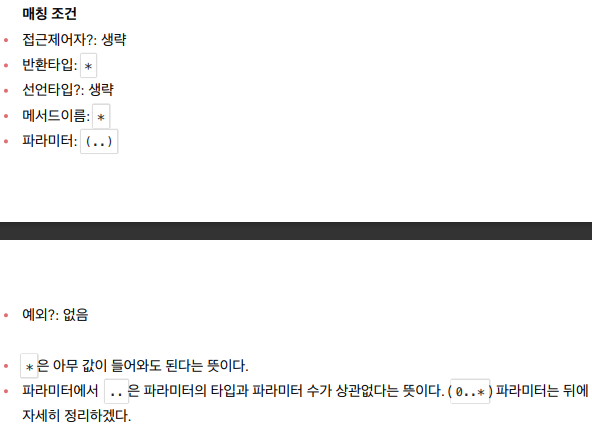

        pointcut.setExpression("execution(* *(..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }

    @Test
    void nameMatch() {
        pointcut.setExpression("execution(* hello(..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }

    @Test
    void nameMatchStar1() {
        pointcut.setExpression("execution(* hel*(..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }

    @Test
    void nameMatchStar2() {
        pointcut.setExpression("execution(* *el*(..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }

    @Test
    void nameMatchFalse() {
        pointcut.setExpression("execution(* nono(..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isFalse();
    }

    @Test

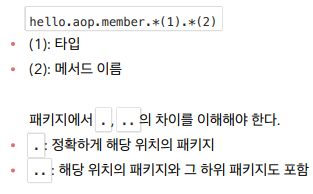

    void packageExactMatch1() {
        pointcut.setExpression("execution(* hello.aop.member.MemberServiceImpl.hello(..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }

    @Test
    void packageExactMatch2() {
        pointcut.setExpression("execution(* hello.aop.member.*.*(..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }

    @Test
    void packageExactMatchFalse() {
        pointcut.setExpression("execution(* hello.aop.*.*(..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isFalse();
    }

    @Test
    void packageMatchSubPackage1() {
        pointcut.setExpression("execution(* hello.aop.member..*.*(..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }

    @Test
    void packageMatchSubPackage2() {
        pointcut.setExpression("execution(* hello.aop..*.*(..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }
}





타입(인터페이스 부모관계)



    @Test
    void typeExactMatch() {
        pointcut.setExpression("execution(* hello.aop.member.MemberServiceImpl.*(..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }

    @Test
    void typeMatchSuperType() {
        pointcut.setExpression("execution(* hello.aop.member.MemberService.*(..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }

    @Test
    void typeMatchInternal() throws NoSuchMethodException {
        pointcut.setExpression("execution(* hello.aop.member.MemberServiceImpl.*(..))");

        Method internalMethod = MemberServiceImpl.class.getMethod("internal", String.class);
        assertThat(pointcut.matches(internalMethod, MemberServiceImpl.class)).isTrue();
    }

    @Test
    void typeMatchNoSuperTypeMethodFalse() throws NoSuchMethodException {
        pointcut.setExpression("execution(* hello.aop.member.MemberService.*(..))");

        Method internalMethod = MemberServiceImpl.class.getMethod("internal", String.class);
        assertThat(pointcut.matches(internalMethod, MemberServiceImpl.class)).isFalse();
    }





메서드

    // String 타입의 파라미터 허용
    // String
    @Test
    void argsMatch() {
        pointcut.setExpression("execution(* *(String))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }

    // 파라미터가 없어야 함
    // ()
    @Test
    void argsMatchNoArgs() {
        pointcut.setExpression("execution(* *())");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isFalse();
    }

    // 정확히 하나의 파라미터 허용, 모든 타입 허용
    // (Xxx)
    @Test
    void argsMatchStar() {
        pointcut.setExpression("execution(* *(*))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }

    // 숫자와 무관하게 모든 파라미터, 모든 타입 허용
    // (), (Xxx), (Xxx, Xxx)
    @Test
    void argsMatchAll() {
        pointcut.setExpression("execution(* *(..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }

    // String 타입으로 시작, 숫자와 무관하게 모든 파라미터, 모든 타입 허용
    // (String), (String, Xxx), (String, Xxx, Xxx)
    @Test
    void argsMatchComplex() {
        pointcut.setExpression("execution(* *(String, ..))");
        assertThat(pointcut.matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }





이제 execution외에 따른 문법들 볼건데, 웬만하면 execution만 쓰니까 참고정도로만 알아두자.



within은 모든 메서드 허용

public class WithinTest {
    AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
    Method helloMethod;
    @BeforeEach
    public void init() throws NoSuchMethodException {
        helloMethod = MemberServiceImpl.class.getMethod("hello", String.class);
    }
    @Test
    void withinExact() {
        pointcut.setExpression("within(hello.aop.member.MemberServiceImpl)");
        assertThat(pointcut.matches(helloMethod,
                MemberServiceImpl.class)).isTrue();
    }
    @Test
    void withinStar() {
        pointcut.setExpression("within(hello.aop.member.*Service*)");
        assertThat(pointcut.matches(helloMethod,
                MemberServiceImpl.class)).isTrue();
    }
    @Test
    void withinSubPackage() {
        pointcut.setExpression("within(hello.aop..*)");
        assertThat(pointcut.matches(helloMethod,
                MemberServiceImpl.class)).isTrue();
    }

    @Test
    @DisplayName("타켓의 타입에만 직접 적용, 인터페이스를 선정하면 안된다.")
    void withinSuperTypeFalse() {
        pointcut.setExpression("within(hello.aop.member.MemberService)");
        assertThat(pointcut.matches(helloMethod,
                MemberServiceImpl.class)).isFalse();
    }

    @Test
    @DisplayName("execution은 타입 기반, 인터페이스를 선정하면 안된다.")
    void executionSuperTypeTrue() {
        pointcut.setExpression("execution(* hello.aop.member.MemberService.*(..))");
        assertThat(pointcut.matches(helloMethod,
                MemberServiceImpl.class)).isTrue();
    }

}



args는 부모타입 허용

public class ArgsTest {
    Method helloMethod;
    @BeforeEach
    public void init() throws NoSuchMethodException {
        helloMethod = MemberServiceImpl.class.getMethod("hello", String.class);
    }
    private AspectJExpressionPointcut pointcut(String expression) {
        AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
        pointcut.setExpression(expression);
        return pointcut;
    }
    @Test
    void args() {
        //hello(String)과 매칭
        assertThat(pointcut("args(String)")
                .matches(helloMethod, MemberServiceImpl.class)).isTrue();
        assertThat(pointcut("args(Object)")
                .matches(helloMethod, MemberServiceImpl.class)).isTrue();
        assertThat(pointcut("args()")
                .matches(helloMethod, MemberServiceImpl.class)).isFalse();
        assertThat(pointcut("args(..)")
                .matches(helloMethod, MemberServiceImpl.class)).isTrue();
        assertThat(pointcut("args(*)")
                .matches(helloMethod, MemberServiceImpl.class)).isTrue();
        assertThat(pointcut("args(String,..)")
                .matches(helloMethod, MemberServiceImpl.class)).isTrue();
    }
    /**

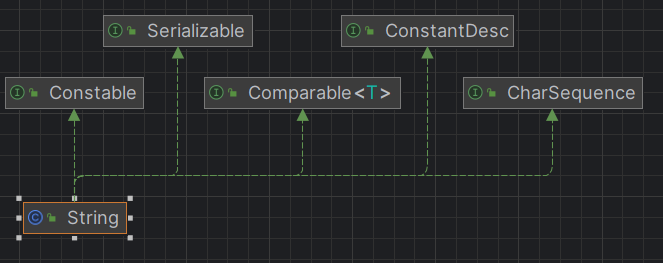

     * execution(* *(java.io.Serializable)): 메서드의 시그니처로 판단 (정적)
     * args(java.io.Serializable): 런타임에 전달된 인수로 판단 (동적)
     */
    @Test
    void argsVsExecution() {
        //Args
        assertThat(pointcut("args(String)")
                .matches(helloMethod, MemberServiceImpl.class)).isTrue();
        assertThat(pointcut("args(java.io.Serializable)")
                .matches(helloMethod, MemberServiceImpl.class)).isTrue();
        assertThat(pointcut("args(Object)")
                .matches(helloMethod, MemberServiceImpl.class)).isTrue();
        //Execution
        assertThat(pointcut("execution(* *(String))")
                .matches(helloMethod, MemberServiceImpl.class)).isTrue();
        assertThat(pointcut("execution(* *(java.io.Serializable))") //매칭 실패
                .matches(helloMethod, MemberServiceImpl.class)).isFalse();
        assertThat(pointcut("execution(* *(Object))") //매칭 실패
                .matches(helloMethod, MemberServiceImpl.class)).isFalse();
    }
}

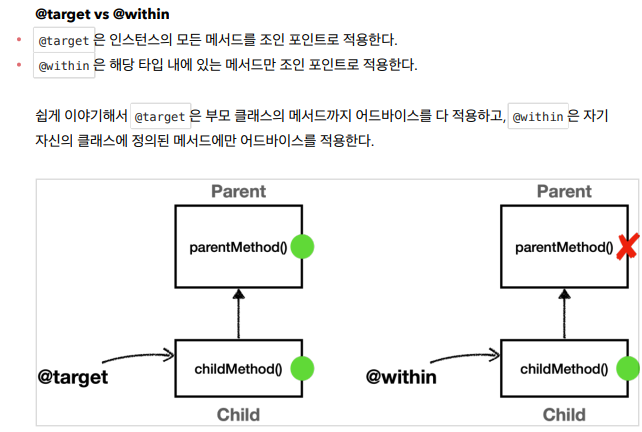

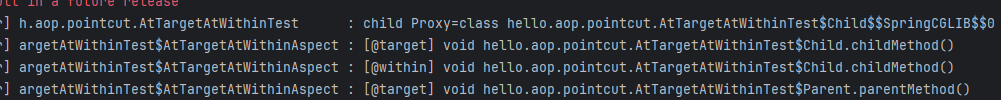

@target과 @within

@Slf4j
@Import({AtTargetAtWithinTest.Config.class})
@SpringBootTest
public class AtTargetAtWithinTest {
    @Autowired
    Child child;

    @Test
    void success() {
        log.info("child Proxy={}", child.getClass());
        child.childMethod(); //부모, 자식 모두 있는 메서드
        child.parentMethod(); //부모 클래스만 있는 메서드
    }

    static class Config {
        @Bean
        public Parent parent() {
            return new Parent();
        }

        @Bean
        public Child child() {
            return new Child();
        }

        @Bean
        public AtTargetAtWithinAspect atTargetAtWithinAspect() {
            return new AtTargetAtWithinAspect();
        }
    }

    static class Parent {
        public void parentMethod() {
        } //부모에만 있는 메서드
    }

    @ClassAop
    static class Child extends Parent {
        public void childMethod() {
        }
    }

    @Slf4j
    @Aspect
    static class AtTargetAtWithinAspect {
        //@target: 인스턴스 기준으로 모든 메서드의 조인 포인트를 선정, 부모 타입의 메서드도 적용
        @Around("execution(* hello.aop..*(..)) && @target(hello.aop.member.annotation.ClassAop)")
        public Object atTarget(ProceedingJoinPoint joinPoint) throws Throwable {
            log.info("[@target] {}", joinPoint.getSignature());
            return joinPoint.proceed();
        }

        //@within: 선택된 클래스 내부에 있는 메서드만 조인 포인트로 선정, 부모 타입의 메서드는 적용되지 않음
        @Around("execution(* hello.aop..*(..)) && @within(hello.aop.member.annotation.ClassAop)")
        public Object atWithin(ProceedingJoinPoint joinPoint) throws Throwable {
            log.info("[@within] {}", joinPoint.getSignature());
            return joinPoint.proceed();
        }
    }
}



주의할점은 args, @args, @target은 프록시가 있어야 하므로 런타임 시점에서 작동한다. 그래서 AOP가 있어야 사용 가능하므로 빈에 등록되어 있는 모든 빈들을 AOP로 바꾸려고 한다. 그래서 final로 못바꾸는 빈들이 있어서 에러가 발생함. 그래서 프록시 적용 대상을 축소하는 표현식과 함께 사용해야 한다.

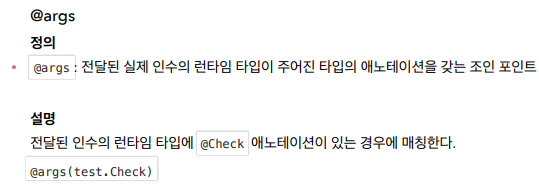

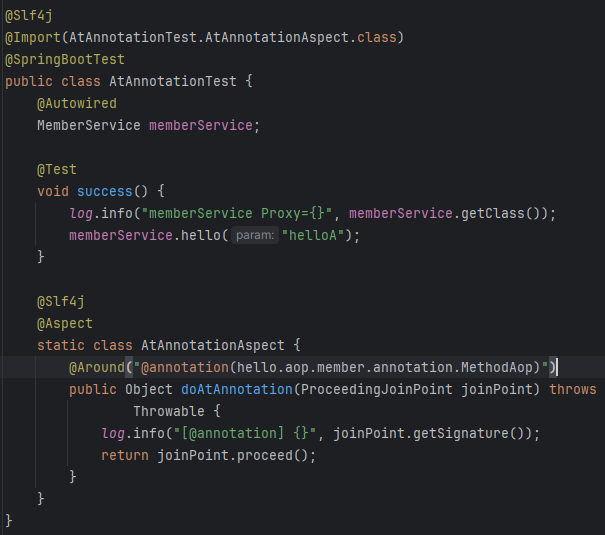

@annotation과 @args



어노테이션이라서 가끔 쓰인다.

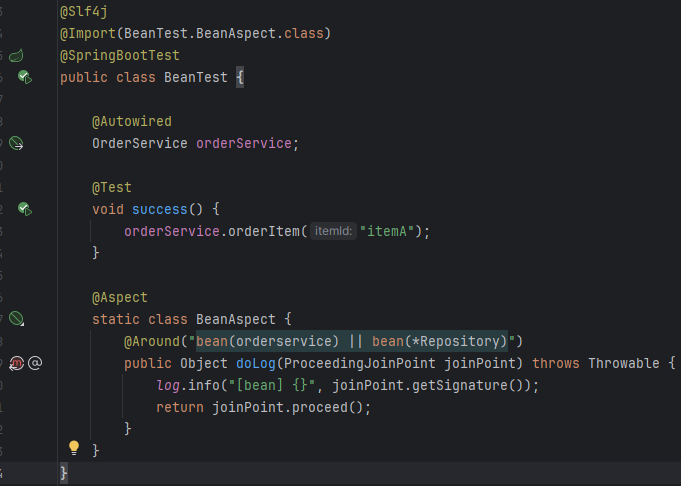

다음은 bean



등록되는 이름이 확정적일 때 쓸 수 있다.

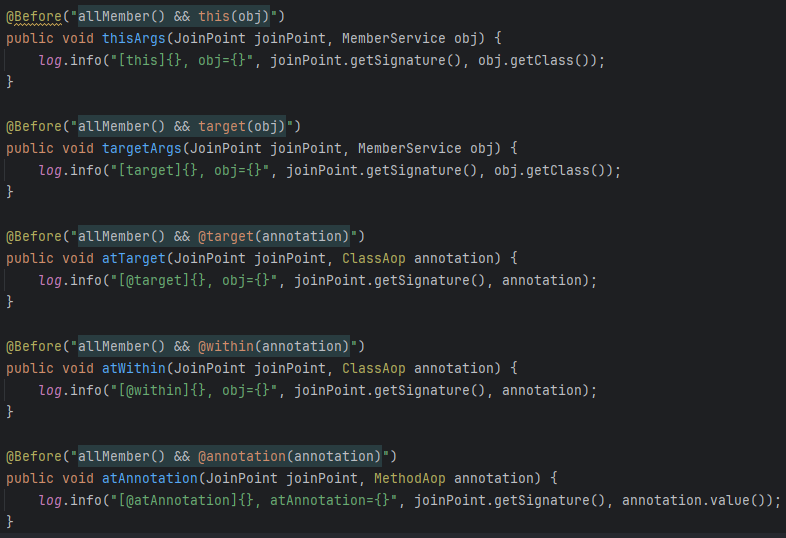

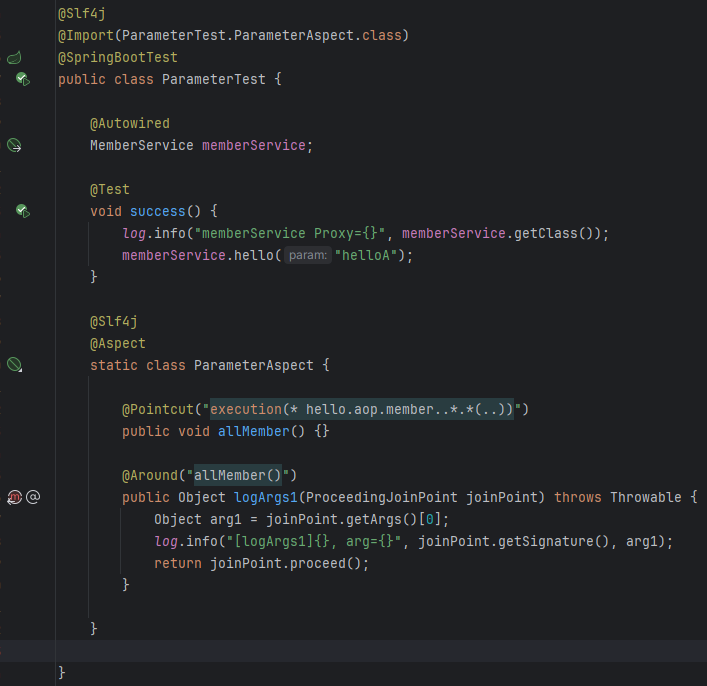

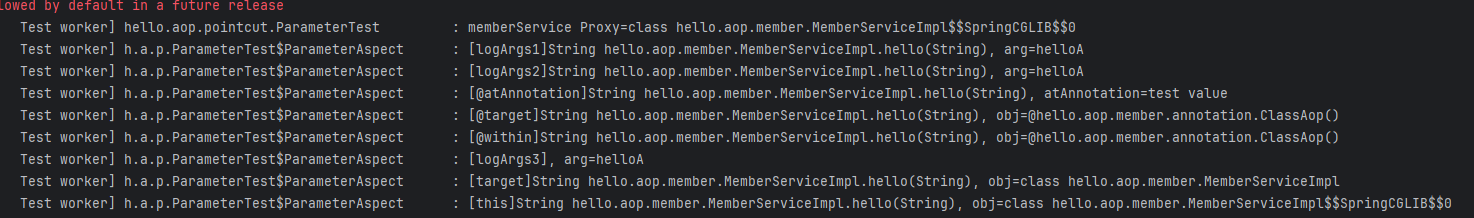

다음은 this, target, args, @target, @within, @annotation, @args

매개변수 이름이 똑같으면 그대로 가져다 쓸 수 있다.

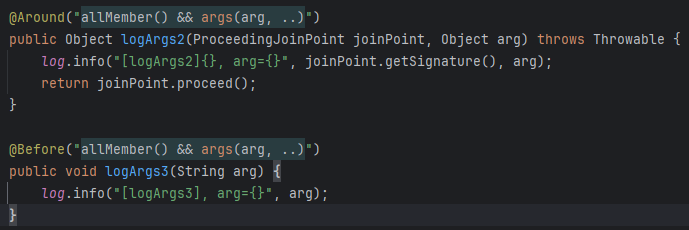

그냥 joinPoint에서 매개변수 가져올 때. 배열로써 가져오는게 직관적이지 않아 더 나은 방법이 args다.







this랑 target



어노테이션도 쓸 수 있고, 메소드 쓰면 안의 매개변수까지 가져오고... 그냥 그렇다. this는 프록시 객체를, target은 프록시로 감싸진 그 클래스 자체를 전달받음.

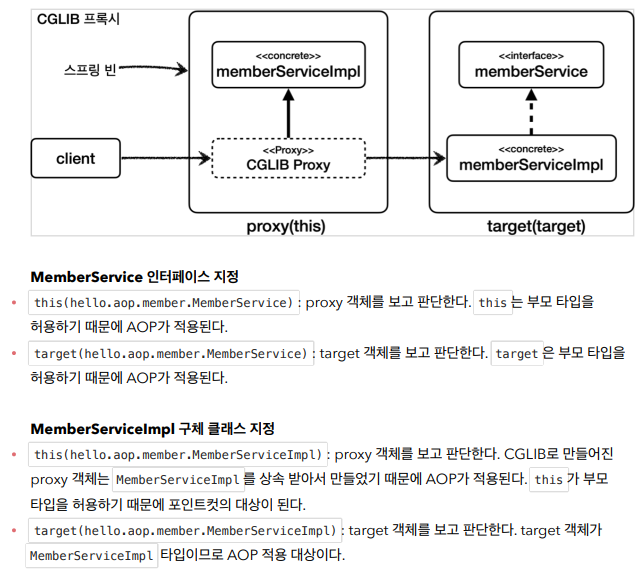

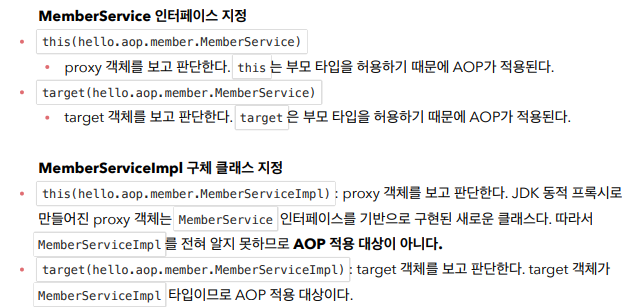

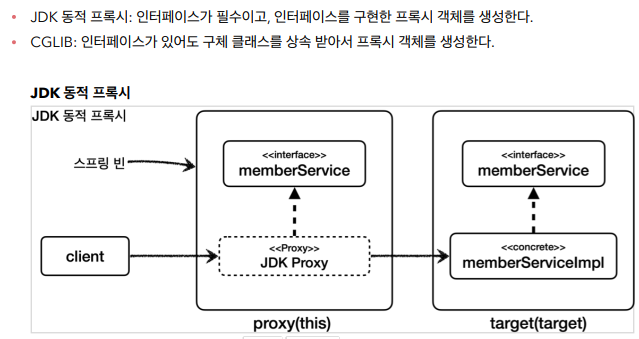

this와 target의 차이.









/**
 * application.properties
 * spring.aop.proxy-target-class=true   CGLIB (default)
 * spring.aop.proxy-target-class=false  JDK Dynamic Proxy
 */
@Slf4j
@Import(ThisTargetTest.ThisTargetAspect.class)
@SpringBootTest(properties = "spring.aop.proxy-target-class=false") // JDK Dynamic Proxy
public class ThisTargetTest {

    @Autowired
    MemberService memberService;

    @Test
    void success() {
        log.info("memberService Proxy={}", memberService.getClass());
        memberService.hello("helloA");
    }

    @Slf4j
    @Aspect
    static class ThisTargetAspect {

        // 부모 타입 허용
        @Around("this(hello.aop.member.MemberService)")
        public Object doThisInterface(ProceedingJoinPoint joinPoint) throws Throwable {
            log.info("[this-interface] {}", joinPoint.getSignature());
            return joinPoint.proceed();
        }

        // 부모 타입 허용
        @Around("target(hello.aop.member.MemberService)")
        public Object doTargetInterface(ProceedingJoinPoint joinPoint) throws Throwable {
            log.info("[target-interface] {}", joinPoint.getSignature());
            return joinPoint.proceed();
        }

        @Around("this(hello.aop.member.MemberServiceImpl)")
        public Object doThis(ProceedingJoinPoint joinPoint) throws Throwable {
            log.info("[this-impl] {}", joinPoint.getSignature());
            return joinPoint.proceed();
        }

        @Around("target(hello.aop.member.MemberServiceImpl)")
        public Object doTarget(ProceedingJoinPoint joinPoint) throws Throwable {
            log.info("[target-impl] {}", joinPoint.getSignature());
            return joinPoint.proceed();
        }
    }
}



/**
 * application.properties
 * spring.aop.proxy-target-class=true   CGLIB (default)
 * spring.aop.proxy-target-class=false  JDK Dynamic Proxy
 */
@Slf4j
@Import(ThisTargetTest.ThisTargetAspect.class)

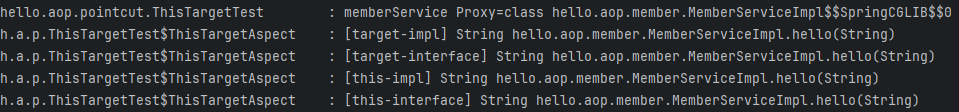

@SpringBootTest(properties = "spring.aop.proxy-target-class=true") // JDK Dynamic Proxy
public class ThisTargetTest {

    @Autowired
    MemberService memberService;

    @Test
    void success() {
        log.info("memberService Proxy={}", memberService.getClass());
        memberService.hello("helloA");
    }

    @Slf4j
    @Aspect
    static class ThisTargetAspect {

        // 부모 타입 허용
        @Around("this(hello.aop.member.MemberService)")
        public Object doThisInterface(ProceedingJoinPoint joinPoint) throws Throwable {
            log.info("[this-interface] {}", joinPoint.getSignature());
            return joinPoint.proceed();
        }

        // 부모 타입 허용
        @Around("target(hello.aop.member.MemberService)")
        public Object doTargetInterface(ProceedingJoinPoint joinPoint) throws Throwable {
            log.info("[target-interface] {}", joinPoint.getSignature());
            return joinPoint.proceed();
        }

        @Around("this(hello.aop.member.MemberServiceImpl)")
        public Object doThis(ProceedingJoinPoint joinPoint) throws Throwable {
            log.info("[this-impl] {}", joinPoint.getSignature());
            return joinPoint.proceed();
        }

        @Around("target(hello.aop.member.MemberServiceImpl)")
        public Object doTarget(ProceedingJoinPoint joinPoint) throws Throwable {
            log.info("[target-impl] {}", joinPoint.getSignature());
            return joinPoint.proceed();
        }
    }
}
