REST 메모

https://restfulapi.net/resource-naming/



https://kubernetes.io/docs/reference/generated/kubernetes-api/v1.27/#endpoints-v1-core

Kubernetes API Reference Docs

https://docs.github.com/ko/rest/git/refs?apiVersion=2022-11-28#get-a-reference







REST is an acronym for REpresentational State Transfer and an architectural style for distributed hypermedia systems. Roy Fielding first presented it in 2000 in his famous dissertation. Since then it has become one of the most widely used approaches for building web-based APIs (Application Programming Interfaces).

REST is not a protocol or a standard, it is an architectural style. During the development phase, API developers can implement REST in a variety of ways.

Like the other architectural styles, REST also has its guiding principles and constraints. These principles must be satisfied if a service interface has to be referred to as RESTful.

A Web API (or Web Service) conforming to the REST architectural style is called a REST API (or RESTful API).

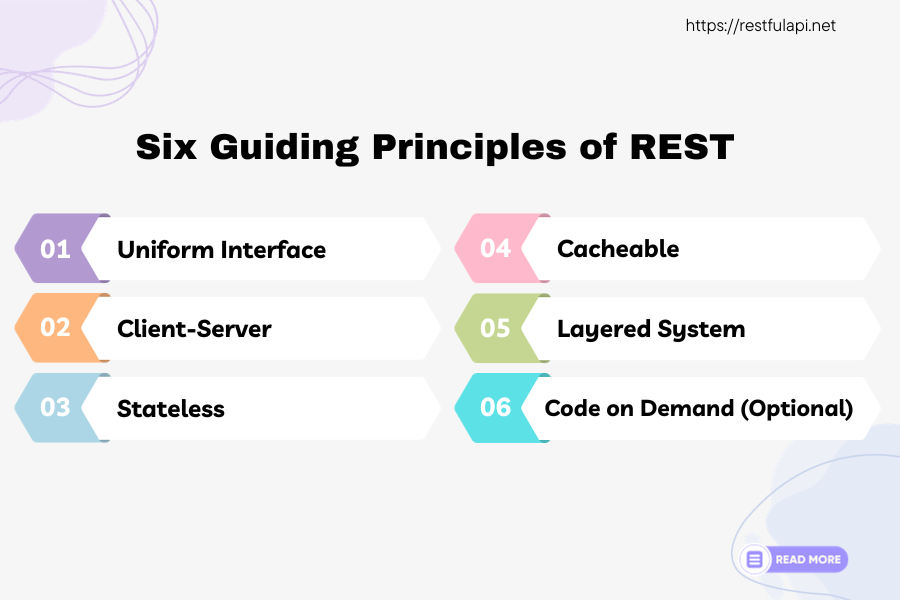

1. The Six Guiding Principles of REST

REST is based on some constraints and principles that promote simplicity, scalability, and statelessness in the design. The six guiding principles or constraints of the RESTful architecture are:

1.1. Uniform Interface

By applying the principle of generality to the components interface, we can simplify the overall system architecture and improve the visibility of interactions. Multiple architectural constraints help in obtaining a uniform interface and guiding the behavior of components.

The following four constraints can achieve a uniform REST interface:

• Identification of resources – The interface must uniquely identify each resource involved in the interaction between the client and the server.
• Manipulation of resources through representations – The resources should have uniform representations in the server response. API consumers should use these representations to modify the resource state in the server.
• Self-descriptive messages – Each resource representation should carry enough information to describe how to process the message. It should also provide information of the additional actions that the client can perform on the resource.
• Hypermedia as the engine of application state – The client should have only the initial URI of the application. The client application should dynamically drive all other resources and interactions with the use of hyperlinks.

In simpler words, REST defines a consistent and uniform interface for interactions between clients and servers. For example, the HTTP-based REST APIs make use of the standard HTTP methods (GET, POST, PUT, DELETE, etc.) and the URIs (Uniform Resource Identifiers) to identify resources.

예) 가격테이블을

payment table (x)

-> prices

GET /users

GET /users/{id}

PATCH /users/{id}



1.2. Client-Server

The client-server design pattern enforces the separation of concerns, which helps the client and the server components evolve independently.

By separating the user interface concerns (client) from the data storage concerns (server), we improve the portability of the user interface across multiple platforms and improve scalability by simplifying the server components.

While the client and the server evolve, we have to make sure that the interface/contract between the client and the server does not break.

예) price와 discount 정도만 주고 클라이언트에게 넘기기. 즉, 서버가 다 해주면 종속적이게 됨

1.3. Stateless

Statelessness mandates that each request from the client to the server must contain all of the information necessary to understand and complete the request.

The server cannot take advantage of any previously stored context information on the server.

For this reason, the client application must entirely keep the session state.

매 요청은 항상 새로 만들어지는 요청. 왠만하면 지켜질 듯

1.4. Cacheable

The cacheable constraint requires that a response should implicitly or explicitly label itself as cacheable or non-cacheable.

If the response is cacheable, the client application gets the right to reuse the response data later for equivalent requests and a specified period.

(https://restfulapi.net/caching/) ->

```

2. Caching in REST APIs

Being cacheable is one of the architectural constraints of REST.

• GET requests should be cachable by default – until a special condition arises. Usually, browsers treat all GET requests as cacheable. -> 브라우저가 왠만하면 해주니 브라우저가 어떻게 캐시에 저장하며 동작할 지를 예상해서 서버를 짜자.
• POST requests are not cacheable by default but can be made cacheable if either an Expires header or a Cache-Control header with a directive, to explicitly allows caching, is added to the response.
• Responses to PUT and DELETE requests are not cacheable at all.

```

1.5. Layered System

The layered system style allows an architecture to be composed of hierarchical layers by constraining component behavior. In a layered system, each component cannot see beyond the immediate layer they are interacting with.

A layman’s example of a layered system is the MVC pattern. The MVC pattern allows for a clear separation of concerns, making it easier to develop, maintain, and scale the application.

1.6. Code on Demand (Optional)

REST also allows client functionality to extend by downloading and executing code in the form of applets or scripts.

The downloaded code simplifies clients by reducing the number of features required to be pre-implemented. Servers can provide part of features delivered to the client in the form of code, and the client only needs to execute the code.

2. What is a Resource?

The key abstraction of information in REST is a resource. Any information that we can name can be a resource. For example, a REST resource can be a document or image, a temporal service, a collection of other resources, or a non-virtual object (e.g., a person).

The state of the resource, at any particular time, is known as the resource representation. The resource representations consist of:

• the data
• the metadata describing the data
• and the hypermedia links that can help the clients transition to the next desired state.

A REST API consists of an assembly of interlinked resources. This set of resources is known as the REST API’s resource model.

2.1. Resource Identifiers

REST uses resource identifiers to identify each resource involved in the interactions between the client and the server components.

2.2. Hypermedia

The data format of a representation is known as a media type. The media type identifies a specification that defines how a representation is to be processed.

A RESTful API looks like hypertext. Every addressable unit of information carries an address, either explicitly (e.g., link and id attributes) or implicitly (e.g., derived from the media type definition and representation structure).

Hypertext (or hypermedia) means the simultaneous presentation of information and controls such that the information becomes the affordance through which the user (or automaton) obtains choices and selects actions.

Remember that hypertext does not need to be HTML (or XML or JSON) on a browser. Machines can follow links when they understand the data format and relationship types.

— Roy Fielding

2.3. Self-Descriptive

Further, resource representations shall be self-descriptive: the client does not need to know if a resource is an employee or a device. It should act based on the media type associated with the resource.

So in practice, we will create lots of custom media types – usually one media type associated with one resource.

Every media type defines a default processing model. For example, HTML defines a rendering process for hypertext and the browser behavior around each element.

Media Types have no relation to the resource methods GET/PUT/POST/DELETE/… other than the fact that some media type elements will define a process model that goes like “anchor elements with an href attribute create a hypertext link that, when selected, invokes a retrieval request (GET) on the URI corresponding to the CDATA-encoded href attribute.”

2.4. Example

Consider the following REST resource that represents a blog post with links to related resources in an HTTP-based REST API. This has the necessary information about the blog post, as well as the hypermedia links to the related resources such as author and comments. Clients can follow these links to discover additional information or perform actions.

{
  "id": 123,
  "title": "What is REST",
  "content": "REST is an architectural style for building web services...",
  "published_at": "2023-11-04T14:30:00Z",
  "author": {
    "id": 456,
    "name": "John Doe",
    "profile_url": "https://example.com/authors/456"
  },
  "comments": {
    "count": 5,
    "comments_url": "https://example.com/posts/123/comments"
  },
  "self": {
    "link": "https://example.com/posts/123"
  }
}

3. Resource Methods

Another important thing associated with REST is resource methods. These resource methods are used to perform the desired transition between two states of any resource.

A large number of people wrongly relate resource methods to HTTP methods (i.e., GET/PUT/POST/DELETE). Roy Fielding has never mentioned any recommendation around which method to use in which condition. All he emphasizes is that it should be a uniform interface.

For example, if we decide that the application APIs will use HTTP POST for updating a resource – rather than most people recommend HTTP PUT – it’s all right. Still, the application interface will be RESTful.

Ideally, everything needed to transition the resource state shall be part of the resource representation – including all the supported methods and what form they will leave the representation.

We should enter a REST API with no prior knowledge beyond the initial URI (a bookmark) and a set of standardized media types appropriate for the intended audience (i.e., expected to be understood by any client that might use the API).

From that point on, all application state transitions must be driven by the client selection of server-provided choices present in the received representations or implied by the user’s manipulation of those representations.

The transitions may be determined (or limited by) the client’s knowledge of media types and resource communication mechanisms, both of which may be improved on the fly (e.g., code-on-demand). [Failure here implies that out-of-band information is driving interaction instead of hypertext.]

4. REST and HTTP are Not the Same

Many people prefer to compare HTTP with REST. REST and HTTP are not the same.

REST != HTTP

Though REST also intends to make the web (internet) more streamlined and standard, Roy Fielding advocates using REST principles more strictly. And that’s where people try to start comparing REST with the web.

Roy Fielding, in his dissertation, has nowhere mentioned any implementation direction – including any protocol preference or even HTTP. Till the time, we are honoring the six guiding principles of REST, which we can call our interface – RESTful.

5. Summary

In simple words, in the REST architectural style, data and functionality are considered resources and are accessed using Uniform Resource Identifiers (URIs).

The resources are acted upon by using a set of simple, well-defined operations. Also, the resources have to be decoupled from their representation so that clients can access the content in various formats, such as HTML, XML, plain text, PDF, JPEG, JSON, and others.

The clients and servers exchange representations of resources by using a standardized interface and protocol. Typically HTTP is the most used protocol, but REST does not mandate it.

Metadata about the resource is made available and used to control caching, detect transmission errors, negotiate the appropriate representation format, and perform authentication or access control.

And most importantly, every interaction with the server must be stateless.

All these principles help RESTful applications to be simple, lightweight, and fast.

Happy Learning !!

References:

• REST APIs must be hypertext-driven
• REST Arch Style



https://restfulapi.net/resource-naming/

1. What is a Resource?

In REST, the primary data representation is called resource. Having a consistent and robust REST resource naming strategy – will prove one of the best design decisions in the long term.

The key abstraction of information in REST is a resource. Any information that can be named can be a resource: a document or image, a temporal service (e.g. “today’s weather in Los Angeles”), a collection of other resources, a non-virtual object (e.g., a person), and so on.

In other words, any concept that might be the target of an author’s hypertext reference must fit within the definition of a resource.

A resource is a conceptual mapping to a set of entities, not the entity that corresponds to the mapping at any particular point in time.

— Roy Fielding’s dissertation

1.1. Singleton and Collection Resources

A resource can be a singleton or a collection.

For example, “customers” is a collection resource and “customer” is a singleton resource (in a banking domain).

We can identify “customers” collection resource using the URI “/customers“. We can identify a single “customer” resource using the URI “/customers/{customerId}“.

/customers			//is a collection resource

/customers/{id}		// is a singleton resource

1.2. Collection and Sub-collection Resources

A resource may contain sub-collection resources also.

For example, sub-collection resource “accounts” of a particular “customer” can be identified using the URN “/customers/{customerId}/accounts” (in a banking domain).

Similarly, a singleton resource “account” inside the sub-collection resource “accounts” can be identified as follows: “/customers/{customerId}/accounts/{accountId}“.

/customers						//is a collection resource

/customers/{id}/accounts		// is a sub-collection resource

1.3. URI

REST APIs use Uniform Resource Identifiers (URIs) to address resources. REST API designers should create URIs that convey a REST API’s resource model to the potential clients of the API. When resources are named well, an API is intuitive and easy to use. If done poorly, that same API can be challenging to use and understand.

The constraint of a uniform interface is partially addressed by the combination of URIs and HTTP verbs and using them in line with the standards and conventions.

Below are a few tips to get you going when creating the resource URIs for your new API.

2. Best Practices

2.1. Use nouns to represent resources

RESTful URI should refer to a resource that is a thing (noun) instead of referring to an action (verb) because nouns have properties that verbs do not have – similarly, resources have attributes. Some examples of a resource are:

• Users of the system
• User Accounts
• Network Devices etc.

and their resource URIs can be designed as below:

/device-management/managed-devices

/device-management/managed-devices/{device-id}

/user-management/users

/user-management/users/{id}

For more clarity, let’s divide the resource archetypes into three categories (document, collection, and store). Then it would be best if you always targeted to put a resource into one archetype and then use its naming convention consistently.

For uniformity’s sake, resist the temptation to design resources that are hybrids of more than one archetype.

2.1.1. document

A document resource is a singular concept that is akin to an object instance or database record.

In REST, you can view it as a single resource inside a resource collection. A document’s state representation typically includes both fields with values and links to other related resources.

Use the “singular” name to denote the document resource archetype.

http://api.example.com/device-management/managed-devices/{device-id}
http://api.example.com/user-management/users/{id}
http://api.example.com/user-management/users/admin

2.1.2. collection

A collection resource is a server-managed directory of resources.

Clients may propose new resources to be added to a collection. However, it is up to the collection resource to choose whether to create a new resource or not.

A collection resource chooses what it wants to contain and also decides the URIs of each contained resource.

Use the “plural” name to denote the collection resource archetype.

/device-management/managed-devices
/user-management/users
/user-management/users/{id}/accounts

2.1.3. store

A store is a client-managed resource repository. A store resource lets an API client put resources in, get them back out, and decide when to delete them.

A store never generates new URIs. Instead, each stored resource has a URI. The URI was chosen by a client when the resource was initially put into the store.

Use “plural” name to denote store resource archetype.

/song-management/users/{id}/playlists

2.2. Consistency is the key

Use consistent resource naming conventions and URI formatting for minimum ambiguity and maximum readability and maintainability. You may implement the below design hints to achieve consistency:

2.2.1. Use forward slash (/) to indicate hierarchical relationships

The forward-slash (/) character is used in the path portion of the URI to indicate a hierarchical relationship between resources. e.g.

/device-management
/device-management/managed-devices
/device-management/managed-devices/{id}
/device-management/managed-devices/{id}/scripts
/device-management/managed-devices/{id}/scripts/{id}

2.2.2. Do not use trailing forward slash (/) in URIs

As the last character within a URI’s path, a forward slash (/) adds no semantic value and may confuse. It’s better to drop it from the URI.

http://api.example.com/device-management/managed-devices/
http://api.example.com/device-management/managed-devices         /*This is much better version*/

2.2.3. Use hyphens (-) to improve the readability of URIs

To make your URIs easy for people to scan and interpret, use the hyphen (-) character to improve the readability of names in long-path segments.

http://api.example.com/devicemanagement/manageddevices/
http://api.example.com/device-management/managed-devices 	/*This is much better version*/

2.2.4. Do not use underscores ( _ )

It’s possible to use an underscore in place of a hyphen to be used as a separator – But depending on the application’s font, it is possible that the underscore (_) character can either get partially obscured or completely hidden in some browsers or screens.

To avoid this confusion, use hyphens (-) instead of underscores ( _ ).

http://api.example.com/inventory-management/managed-entities/{id}/install-script-location  //More readable

http://api.example.com/inventory-management/managedEntities/{id}/installScriptLocation  //Less readable

2.2.5. Use lowercase letters in URIs

When convenient, lowercase letters should be consistently preferred in URI paths.

http://api.example.org/my-folder/my-doc       //1
HTTP://API.EXAMPLE.ORG/my-folder/my-doc     //2
http://api.example.org/My-Folder/my-doc       //3

In the above examples, 1 and 2 are the same, but 3 is not as it uses My-Folder in capital letters.

2.3. Do not use file extensions

File extensions look bad and do not add any advantage. Removing them decreases the length of URIs as well. No reason to keep them.

Apart from the above reason, if you want to highlight the media type of API using file extension, then you should rely on the media type, as communicated through the Content-Type header, to determine how to process the body’s content.

/device-management/managed-devices.xml  /*Do not use it*/

/device-management/managed-devices 	/*This is correct URI*/

2.4. Never use CRUD function names in URIs

We should not use URIs to indicate a CRUD function. URIs should only be used to identify the resources and not any action upon them uniquely.

We should use HTTP request methods to indicate which CRUD function is performed.

HTTP GET /device-management/managed-devices  			//Get all devices
HTTP POST /device-management/managed-devices  			//Create new Device

HTTP GET /device-management/managed-devices/{id}  		//Get device for given Id
HTTP PUT /device-management/managed-devices/{id}  		//Update device for given Id
HTTP DELETE /device-management/managed-devices/{id}  	//Delete device for given Id

2.5. Use query component to filter URI collection

Often, you will encounter requirements where you will need a collection of resources sorted, filtered, or limited based on some specific resource attribute.

For this requirement, do not create new APIs – instead, enable sorting, filtering, and pagination capabilities in resource collection API and pass the input parameters as query parameters. e.g.

/device-management/managed-devices
/device-management/managed-devices?region=USA
/device-management/managed-devices?region=USA&brand=XYZ
/device-management/managed-devices?region=USA&brand=XYZ&sort=installation-date

3. Do not Use Verbs in the URI

It is not correct to put the verbs in REST URIs. REST uses nouns to represent resources, and HTTP methods (GET, POST, PUT, DELETE, etc.) are then used to perform actions on those resources, effectively acting as verbs.

If we use verbs in the URI, we are most probably creating an RPC-style method call having a JSON or XML request/response format. It would be incorrect to call it REST.

/device-management/managed-devices/{id}/scripts/{id}/execute    //It is RPC, and not REST

In cases, where we need to perform some action that does not apply naturally to the definition of resources, we can create the custom URIs that can be considered nouns/resources and perform an action over them.

For example, instead of invoking /scripts/{id}/execute , we can create a resource for all scripts currently executing and submit a script to it if we want to execute a script.

/device-management/managed-devices/{id}/scripts/{id}/execute	//DON't DO THIS!

/device-management/managed-devices/{id}/scripts/{id}/status		//POST request with action=execute

You may also consider using the custom methods with colon(:) as described in custom methods by Google Cloud Docs, although many may find it in violation of REST principles.

4. Conclusion

In conclusion, we can say that resources are primarily nouns (objects) and we should avoid deviating from this principle. Anytime, we feel put verbs in the URI, we are creating an RPC call.
